TShaft

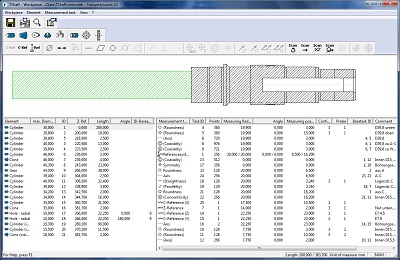

Rotationally symmetrical parts can be inspected according to their geometrical tolerances and form and position tolerances with TShaft.

Measurement and evaluation of

The single characteristic inspections can be combined in a single measurement procedure:
 1.Diameter
 2.Distance
 3.Axial and radial run-out
 4.Perpendicularity and parallelism
 5.Roundness
    LSC (Least squares circle)
    MCC (minimum circumscribed circle)
    MIC (maximum inscribed circle)
    MZC (minimum zone circle)
 6.Flatness and straightness
 7.Accumulated run-out (axial and radial)
 8.Position
 9.Concentricity and coaxiality
10.Symmetry
11.Cylindricity
12.Run-out of interrupted contours

These defiened measurement procedures can be combined with measurements of spur gears, bevel gears and worm gears.
