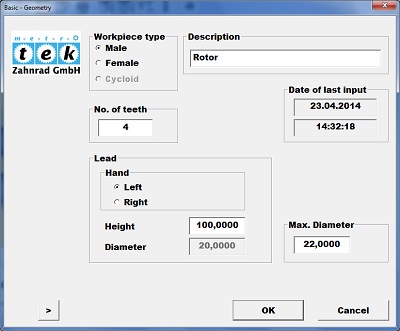

Female and male rotors can be analyzed with TRotor. The scope of analysis includes inspection of profile, lead and pitch.
The profile is measured and compared with nominal data in transverse plane or in axial direction. With the integrated evaluation software Graftool the deviations are calculated and shown graphically.

Measurement and evaluation of

The following deviations of the measurements are presented on a standard measurement report:

  1. The lead measurement shows ffß, fHß, Fß and helix error per round.
  2. The pitch test shows Fp, fp, fu and Fr
  3. Evaluation according to free tolerances
