The parameters of an unknown gear, module (mn), helix angle (ß) and pressure angle (a), can be determined wit TReverse.

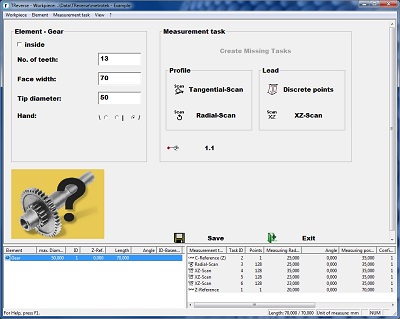

Parameters like number of teeth and face width have to be entered. Afterwards a tooth flank is scanned and based upon this measurement all parameters necessary are calculated.

These parameters can be used for a standard
gear measurement with TGear.

Inspection and evaluation

  1. Evaluates the profile and/or the lead by scans or by probing discrete points of the gear.
  2. Executes the measuring tasks which are necessary for the evaluation automatically by the function "Create missing tasks"
